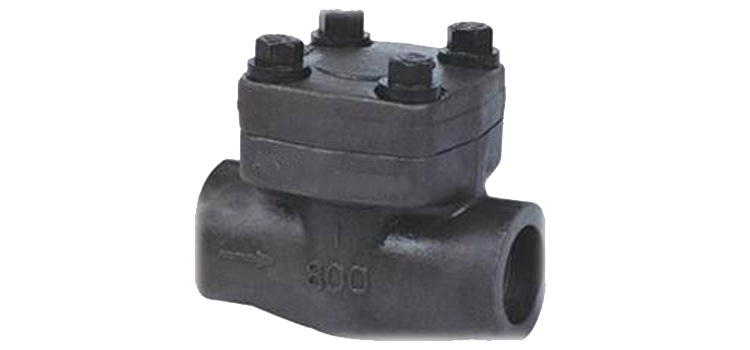

Forged Steel Lift Check Valve IBR and NON IBR( 800/1500/2500 Class)

Features:

  • ⇒ Bolted Cover.
  • ⇒ Piston Type, Reduced Bore.
  • ⇒ Design Std: BS 5352, Testing as per BS EN 12266 Part -I
  • ⇒ Ends : Screwed to BSP as per BS 21/ANSI/ASME B 1.20NPT./ Socket welds to B 16.11/Butt weld as per ANSI B 16.25

On Request:

  • ⇒ NACE AS PER MR-01-75
  • ⇒ Integral Flanges/Butt weld Ends.
  • ⇒ Welded cover.
  • ⇒ Consult us for High Temp/ Pressure & for Cryogenic services.

Material of Construction:

  • ⇒ Body: A105/F11/F22/A 182 Gr. 304/F316/LF2/Duplex
  • ⇒ Cover: A105/F11/F22/A 182 Gr. 304/F316/LF2/Duplex
  • ⇒ Gasket: Sp. Wound SS 304+ Graphite
  • ⇒ Plug: 13% Cr./ SS 304/ SS 316/Monel
  • ⇒ Seat Ring: 13% Cr./ SS 304/ SS 316 / Stellite
  • ⇒ Available Size: 8 mm To 50mm
