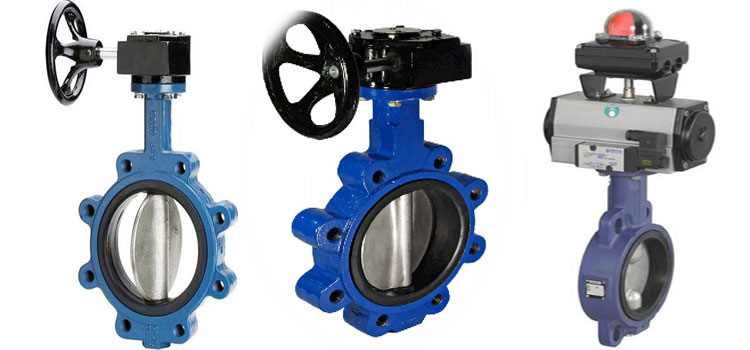

Butterfly Valve
Butterfly Valve are rotary motion valve that is used to stop , regulate , and start fluid flow.
Features:
- ⇒ Design Std.: BS EN 593/API 609/AWWA /BS 5155, As per Testing Std.: BS EN 12266 Part.
- ⇒ Suitable to mount between ANSI/BS/DIN flanges.
- ⇒ Integrally Molded Liner/ Replaceable Liner
- ⇒ Positively Locked Shafts.
- ⇒ Lever with Plate for different positions.
- ⇒ Pressure Rating-PN-10/PN-16 /PN 25 / 150#
- ⇒ Temp. Range: -20 to +120 Degree Centigrade
Material of Construction
- ⇒ BODY: CI/Ductile Iron/WCB/CF8/CF8M/ Al. Bronze/Duplex
- ⇒ DISC: Ductile Iron/ CA15/ CF8/CF8M/AL. Bronze/Duplex
- ⇒ SHAFT:SGI/SS410/SS 304/SS 316/ Other higher alloys.
- ⇒ SEAT: EPDM/Viton/Silicon Rubber/PTFE/ Natural Rubber
- ⇒ O RING: EPDM/ Viton/ Silicon Rubber/ Natural Rubber/PTFE
On Request:
- ⇒ Extended Spindle for Cryogenic Services.
- ⇒ Locking Arrangement.
- ⇒ Lever/Gear/Pneumatic/Electric Actuator.
- ⇒ Higher Pressure Rating up to PN 40.
- ⇒ Encapsulated Disc.
- ⇒ Top Flanged as per ISO 5211.
Please Consult Us For:
- ⇒ Other Body/Disc Material.
- ⇒ Seat/Liner material considering the material.
- ⇒ Metal Seated , High Performance to API 609/AWWA C 504
- ⇒ Double/Triple Eccentric
- ⇒ WAFER TYPE
- ⇒ LUGGED TYPE
- ⇒ DOUBLE FLANGED TYPE
- ⇒ DOUBLE OFFSET TYPE
- ⇒ TRIPPLE OFFSET TYPE
