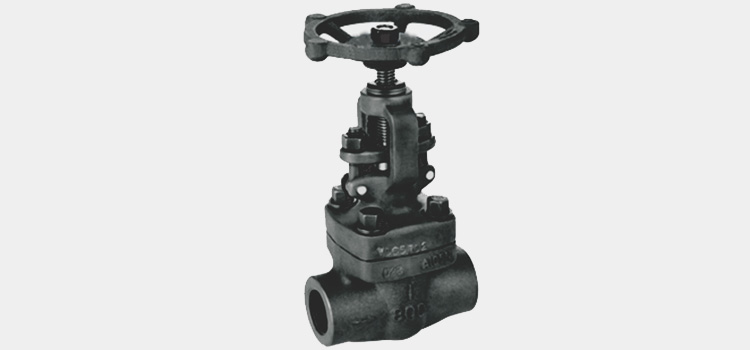

Forged Steel Gate Valve IBR & NON-IBR (800/1500/2500 Class)

Features:

  • ⇒ OS & Y Type, Bolted Bonnet.
  • ⇒ Design Std: API 602/ANSI B 16.34/ Testing as per API 598
  • ⇒ Low operating Torque.
  • ⇒ Valves with Back seat arrangement.
  • ⇒ Solid wedge.
  • ⇒ Screwed to BSP as per BS 21/ANSI/ASME B 1.20 NPT./
  • ⇒ Socket weld to B 16.11/ Butt weld ends as per B 16.25.

On Request:

  • ⇒ Regular / Full Bore construction.
  • ⇒ Locking arrangement.
  • ⇒ NACE as per MR-01-75
  • ⇒ Welded Bonnet.
  • ⇒ Stellited/ Hard Faces.

Please Consult Us For:

  • ⇒ High Temperature /Cryogenic Services.
  • ⇒ Other Material.
  • ⇒ Other trim Material: CN5/CN8/CN12

Material of Construction:

  • ⇒ Body: A105/F11/F22/A 182 Gr. 304/F316/LF2/Duplex
  • ⇒ Bonnet: A105/F11/F22/A 182 Gr. 304/F316/LF2/Duplex
  • ⇒ Gasket: Sp. Wound SS 304/ SS 316 with graphite/PTFE Filter.
  • ⇒ Gland Packing: Graphoil/PTFE.
  • ⇒ Wedge Facing:13% Cr./ SS 304/ SS 316 / Duplex
  • ⇒ Seat: 13% Cr. SS 304/ SS 316/Stellite / Duplex
  • ⇒ Stem: F6/ SS 304/ SS 316
  • ⇒ Gland Bush: A 105/ suitable to body Material.
  • ⇒ Gland Flange: Forged Steel.
  • ⇒ Yoke Sleeve: A 439-D2/Al-Bronze.
  • ⇒ Hand wheel: Malleable Iron/ Cast steel.
