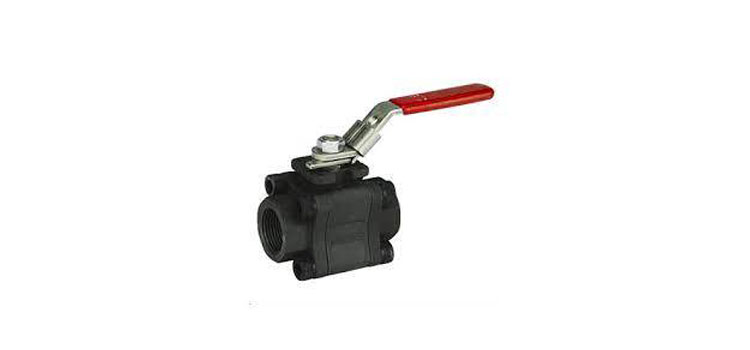

Forged Ball Valve

Features:

  • ⇒ Low operating Torque.
  • ⇒ Blowout proof design & Antistatic Device.
  • ⇒ Design Std: BS EN 17292 / BS 5351/ Testing as per BS EN 12266 Part-1 Pressure Rating: 800# to 2500#
  • ⇒ Face to Face Dimensions as per Mfg'r STD.
  • ⇒ Full/ Reduced Bore
  • ⇒ Ends Connection : Screwed end /Socket weld / Butt weld

On Request:

  • ⇒ Extended Spindle for cryogenic services.
  • ⇒ Locking arrangement.
  • ⇒ Operation : Lever / Pneumatic/Electric Actuator.
  • ⇒ NACE as per MR-01-75.
  • ⇒ Metal Seated Valve.

Please Consult Us For:

  • ⇒ High Temp./Cryogenic Services
  • ⇒ Other material.
  • ⇒ Other trim material.
  • ⇒ Fully jacketed valve.
  • ⇒ Higher end connection.
  • ⇒ Other end connection.
  • ⇒ Screwed/Socket weld ends.
  • ⇒ (800# to 2500#)

Material of Construction:

  • ⇒ Body : A105/F304/F316/Monel /Duplex /Alloy 20/LF2
  • ⇒ End Piece: A105/F304/F316/Monel /Duplex /Alloy 20/LF2
  • ⇒ Body Seat: PTFE / CFT/GFT/ PEEK/ Graphite/Metal Seated
  • ⇒ Ball: CF8/CF8M/ Duplex/Alloy 20/Monel
  • ⇒ Stem: SS 410/ SS 304/ SS316/ Alloy 20/ Monel
  • ⇒ Stem Seal: Graphoil/PTFE/ Viton
  • ⇒ Gland: A 105/ CF8/ CF8M
