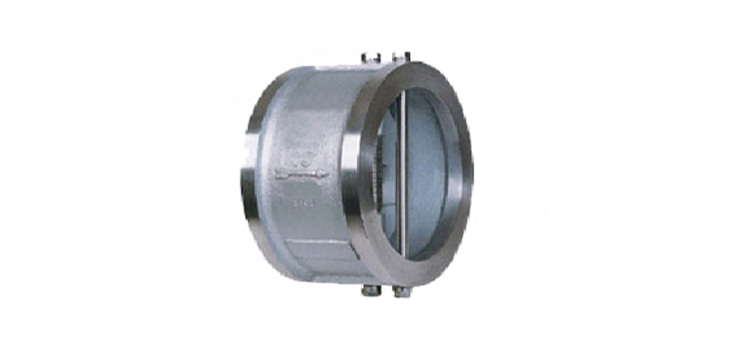

Dual Plate Check Valve

Features:

• ⇒ Design Std.: API 594, Testing Std.: API 598
• ⇒ Retainer less /Retainer Design.
• ⇒ Independent Plate closing action.
• ⇒ Increased Seat life.
• ⇒ Suitable to mount between ANSI / BS/ DIN Flanges.
• ⇒ Wafer Type.

Material of Construction:

• ⇒ BODY: CI/WCB/CF8/CF8M/Al. Bronze/Duplex
• ⇒ DISC PLATE: WCB/ CF8/ CF8M/Al. Bronze/Duplex
• ⇒ SEAT :- EPDM/ Nitrile / Buna –N / Metal Seated
• ⇒ HINGE /STOP PIN: SS 410/SS316/Suitable as per trim material.
• ⇒ STEM: SS 316/ SS 410

On Request:

• ⇒ Other/Disc Material
• ⇒ Rubber lined valves
• ⇒ Flanged Ends/Hub Ends.
• ⇒ Stellited /Hard Face
• ⇒ Soft seat-Rubber/PTFE
• ⇒ NACE as per MR-01-75
• ⇒ Valves as per API 6D

AVAILABLE Size: 40 MM to 1500 MM
