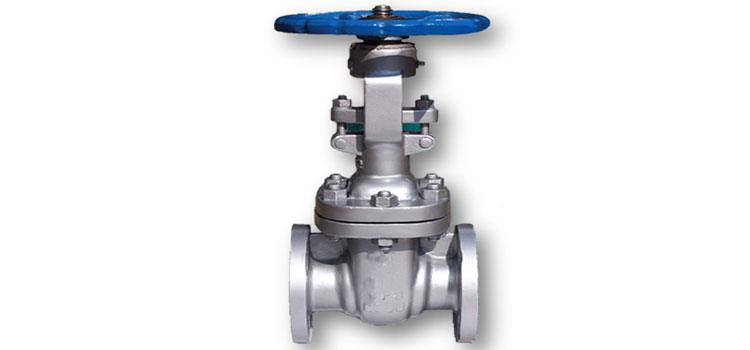

Cast Gate Valve

Features:

• ⇒ OS &Y type, Bolted Bonnet/ Pressure Sealed Bonnet.
• ⇒ Low operating Torque.
• ⇒ Design Std: API 600/ANSI B 16.34,Testing as per API 598
• ⇒ Face to Face Dimensions as per ANSI B 16.10
• ⇒ Flange Drilling as per ANSI B 16.5,RF Serrated.
• ⇒ Valve with Back Seat arrangement.
• ⇒ Flexible wedge and Solid wedge
• ⇒ Deep Stuffing box to accommodate more packing rings.

On Request:

• ⇒ API 6D design.
• ⇒ Extended Bonnet for cryogenic services.
• ⇒ Locking arrangement.
• ⇒ Gear/Electric actuated.
• ⇒ Ring joints facing/Butt welds ends.
• ⇒ NACE as per MR-01-75
• ⇒ Stellated /Hard faces.

Please Consult Us For:

• ⇒ High Temp/Cryogenic Services.
• ⇒ Other Trim Material.
• ⇒ Bolted Bonnet.
• ⇒ For IBR & Non-IBR

Material of Construction:

• ⇒ Body: WCB/LCB/CF8/CF8M/Monel/WC6/WC9
• ⇒ Bonnet: WCB/LCB/CF8/CF8M/Monel/WC6/WC9
• ⇒ Trim : CN5/CN8/CN12
• ⇒ Gasket: Sp. Wound SS 304/316 with Graphite/PTFE
• ⇒ Gland Packing: Graphoil /PTFE
• ⇒ Wedge Facing: 13% Cr./CF8/CF8M/ Monel
• ⇒ Seat Facing: 13% Cr./CF8/CF8M/ Monel
• ⇒ Stem: SS 410/SS 304/ SS 316/ Monel
• ⇒ Back Seat: SS 410/ SS 304/ SS 316/ Monel
• ⇒ Gland Bush: SS 410/ SS 304/ SS 316/ Monel
• ⇒ Gland Flange: CS/ Suitable for Body Material
• ⇒ Yoke Sleeve: A 439-D2/ Al.Bronze
• ⇒ Hand Wheel: Malleable Iron/Cast Steel
